Tablet Press VII

₹850,000.00

Technical Specifications

Model	Tablet Press VII	Tablet Press VII	Tablet Press VII
No of stations	27	35	45
Tooling	D	B	BB
Max. Tablet Diameter – mm	25	16	13
Max. Depth of fill-mm	20	17	15
Tablets/Hr. (Max.)*	155520	201600	259200
Turret RPM (Max.)	48	48	48
Max. compression in Ton	10	6.5	6.5
Upper Punch Penetration-mm	1.5-8
Electric Motor	7.5 HP, 415V AC, 3 Phase, 1440 RPM
Force Feeder Motor(Optional)	0.25 HP, 230V AC, 3 Phase, 960 RPM
Input Power Supply	415 V AC, 3 Phase, 50 Hz
Machine Size in mm	850 x 1145 x 1715
Case Size in mm	1372 x 1295 x 2057
Net Weight in kg.	1280
Gross Weight in kg.	1650

Category: Tablet Press

Description

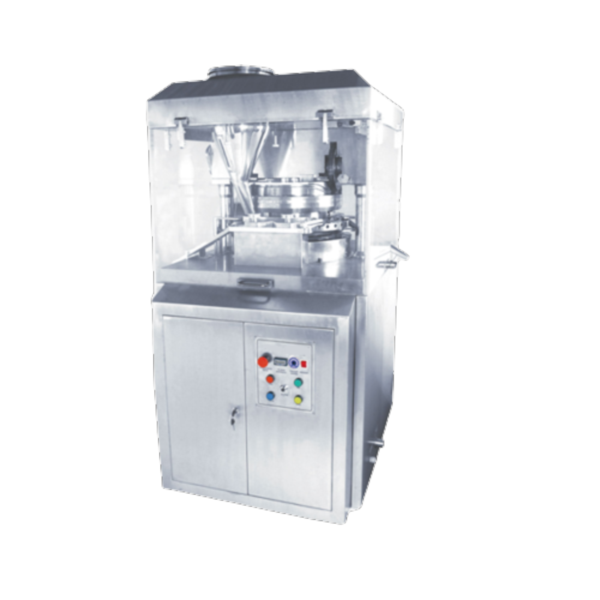

Tablet Press VII

Machine is built on center squire shaped casted body, casted middle top plate and head (hard chrome) with pressure rods, which makes tubular robust construction of machine and ensure smooth operation. The precise speed control is possible by AC inverter drive.
