Tablet Press X

₹2,600,000.00

Technical Specifications

Model	Tablet Press X	Tablet Press X	Tablet Press X	Tablet Press X
No of stations	51	61	75	81
Tooling	D	B	BB	BB SP
Max. Tablet Diameter – mm	25	16	13	11
Max. Depth of fill-mm	20	17	15	15
Tablets/Hr. (Max.)*	367200	439200	540000	583200
Turret RPM (Max.)	60	60	60	60
Max. compression in Ton	10	6.5	6.5	6.5
Upper Punch Penetration-mm	1-8
Electric Motor	10 HP, 415V AC, 3 Phase, 50 Hz, 1440 RPM
Force Feeder Motor(Optional)	0.25 HP, 230V AC, 3 Phase, 50 Hz, 960 RPM
Input Power Supply	415 V AC, 3 Phase, 50 Hz
Machine Size in mm	1120 x 1300 x 1800
Case Size in mm	1610 x 1610 x 2200
Net Weight in kg.	3700
Gross Weight in kg.	4500

Category: Tablet Press

Description

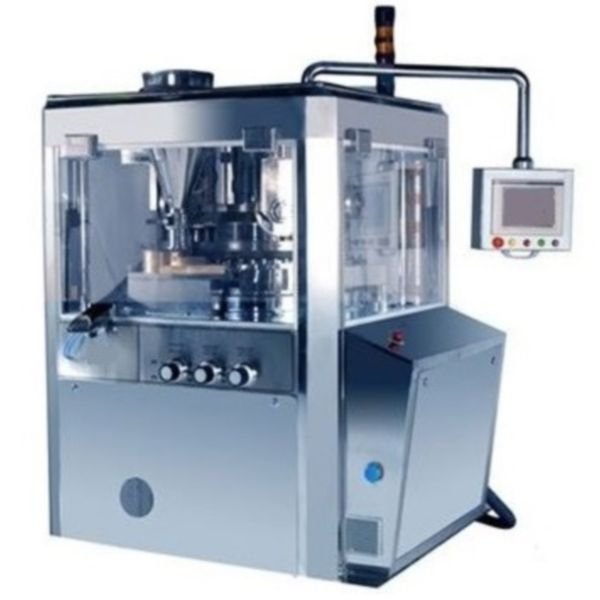

Tablet Press X

The machine is inbuilt with pre-compression and all machine controls are adjustable from outside of the machine. The Main & pre-compression is having fix capacity of 10 ton & 4 ton. Press rolls have a unique sliding mechanism which makes the machine easy accessible during cleaning & maintenance. The provision has been already incorporated in the machine to use double die life by reversing the dies.

Optional Features:

Bilayer
